Cabinet Air Conditioner Field Installation Case

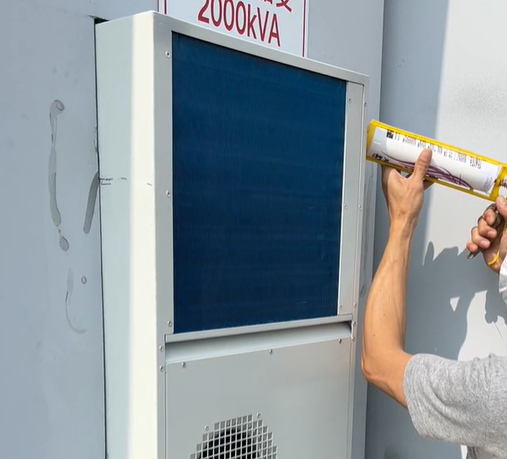

This industrial cabinet air conditioner is side-mounted on the electrical cabinet. Its front blue fin condenser efficiently dissipates heat outwards, while internal cooling circulation maintains a stable temperature inside the cabinet. Power cabinets with high-capacity transformers generate substantial heat during continuous operation. Without effective thermal management, high temperature will degrade insulation materials, trigger over-temperature alarms, and shorten the lifespan of power components.

Sealing work is critical in the installation process. Proper sealing prevents hot outdoor air, dust and moisture from leaking into the cabinet. It avoids condensation and keeps the internal working environment clean and dry. After fixing the unit and applying sealant, the team will carry out wiring, parameter setup and full operational testing.

Designed for heavy-duty power industry scenarios, this cabinet air conditioner features a rugged metal casing, anti-corrosion coating and reliable refrigeration system. It delivers constant cooling performance under harsh outdoor conditions. Real-time temperature monitoring and built-in fault alarms allow operators to quickly respond to abnormal running status.

By deploying this thermal solution, the 2000kVA power cabinet can run steadily all year round. It reduces unexpected downtime, cuts maintenance costs, and protects expensive power equipment. This installation fully demonstrates our complete on-site service capability, from product supply to professional field construction. It is a mature thermal control solution for power distribution, energy storage and large electrical cabinet projects.

Cabinet Air Conditioner On-site Installation Case

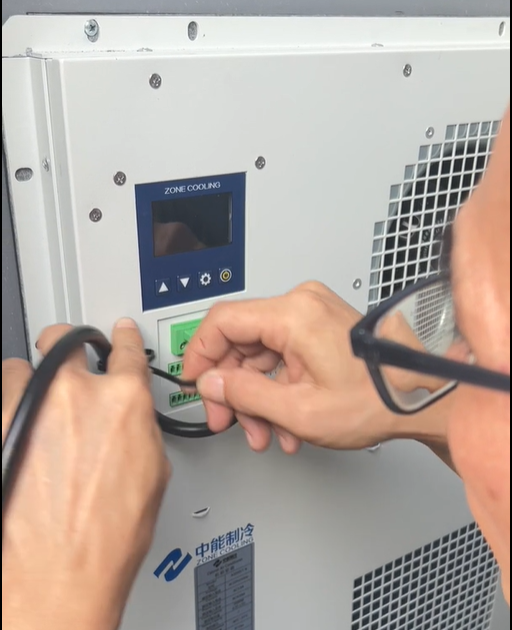

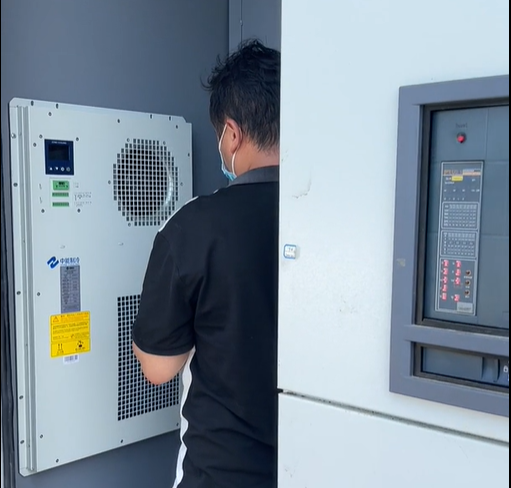

This photo shows the on-site wiring and commissioning work of the ZONE COOLING cabinet air conditioner manufactured by Zhongneng Cooling. This type of cabinet cooling unit is specially designed for industrial electrical enclosures, to stabilize internal temperature and protect sensitive electronic components from overheating, dust and humidity.

The technician is carefully connecting signal wires to the green terminal block of the unit’s control panel. The built-in controller with display screen supports real-time temperature monitoring, parameter adjustment and fault alarm functions. Operators can easily set target temperature, check running status and troubleshoot via the buttons on the panel. The unit adopts compact integrated structure, with ventilation grilles for air circulation, making it easy to mount on the side of electrical cabinets.

In industrial scenarios such as communication cabinets, energy storage cabinets and automation control cabinets, high heat generated by inverters, power modules will cause accelerated aging and unexpected shutdown of electrical devices. This cabinet air conditioner provides reliable localized cooling, maintaining a constant internal environment for the enclosure.

During on-site installation, standardized wiring is critical to ensure stable communication between the air conditioner and the cabinet monitoring system. After wiring completion, technicians will run full function tests, verifying cooling performance, fan operation and alarm response.

With robust construction and intelligent control, this cabinet air conditioner reduces equipment failure rates and extends service life of valuable electrical assets. It is a proven thermal management solution for industrial outdoor and indoor cabinet applications.

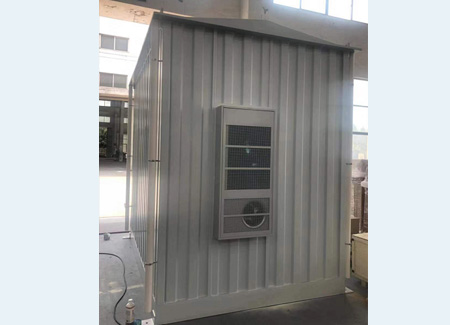

Cabinet Air Conditioner On‑Site Installation

This case shows the on‑site commissioning of cabinet air conditioner for outdoor electrical enclosure, which is widely used to protect critical electronic equipment from high temperature, humidity and dust damage.

In this project, technicians perform field installation and debugging work for the enclosure cooling unit. The cabinet air conditioner is mounted on the side of the electrical cabinet. It provides stable temperature control for internal power components, controller modules and circuit breakers. Without proper cooling, overheating will lead to system shutdown, unexpected faults and shortened service life of expensive electric parts.

During site operation, the engineer checks mechanical assembly, wiring connection, display panel parameters and fan running status step by step. All key indicators including set temperature, working current and alarm function are fully tested. The unit adopts air‑to‑air heat exchange design, isolating internal cabinet air from outside dirty air. It prevents dust, rain and moisture entering the electrical cabinet, maintaining clean and constant‑temperature inner environment.

This cooling solution fits telecom shelters, energy storage cabinets and industrial control cabins. Compared with simple ventilation fans, cabinet air conditioner delivers precise cooling performance under harsh outdoor conditions. It can work reliably in hot summer or high‑humidity scenarios.

After complete commissioning, the cooling unit runs smoothly. Real‑time temperature data is shown on the built‑in LCD screen. The whole‑site test verifies stable cooling capacity and reliable alarm response. This successful application proves that high‑quality cabinet air conditioner effectively reduces equipment failure risk, cuts maintenance cost and guarantees long‑term safe operation of whole electrical system.

Cabinet Air‑Conditioning for Industrial Control Cabinet

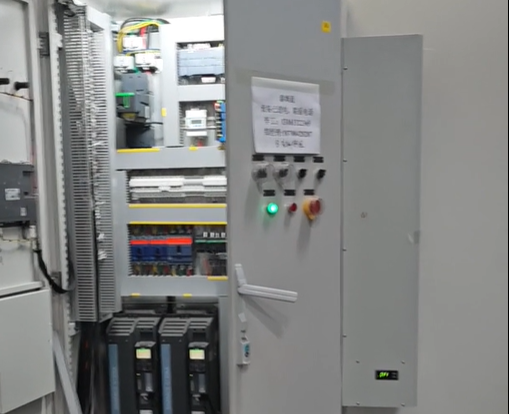

This field case showcases cabinet air‑conditioning serving a heavy‑duty industrial electrical control cabinet. Fitted with multiple high‑power frequency converters, PLC modules and power components, the cabinet generates substantial heat during continuous operation. Without effective thermal management, high internal temperature would trigger component derating, unstable signals and premature hardware failure.

The cabinet‑mounted air conditioner, visible on the left side of the enclosure, delivers targeted closed‑loop cooling for the electrical compartment. It dissipates heat produced by drives and power units, maintaining stable internal temperature and humidity regardless of fluctuating factory ambient conditions. By isolating internal cabinet air from dusty workshop air, it also keeps dust, moisture and corrosive particles away from sensitive electronics.

On the cabinet front, status lamps, selector switches and an emergency‑stop button enable on‑site operation. Instruction notes provide technicians with commissioning and fault reference. Inside, neatly routed wiring and partitioned power distribution support long‑term reliable running.

Thanks to the cabinet air‑conditioning solution, key devices such as inverters and PLC stay within safe operating temperature ranges. It cuts unplanned downtime and extends service life of expensive control hardware. This application proves that cabinet air conditioners are indispensable thermal control for high‑density electrical cabinets, widely deployed for automation, refrigeration and manufacturing facilities.

Safety Management Case of Outdoor Electrical Cabinet

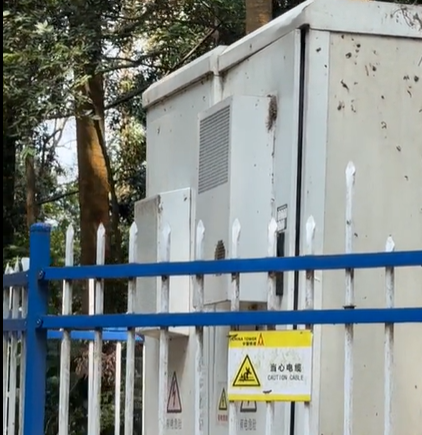

This outdoor electrical cabinet is located beside woodland. It is enclosed by blue‑and‑white protective fencing and posted with warning labels of “Caution: Cable”. The equipment serves power or communication signal transmission. Exposed to public‑accessible outdoor surroundings with dense trees and humid conditions, it becomes a key spot for safety control.

Long‑term exposure to sun and rain brings hidden risks to outdoor cabinets. Common defects include cabinet rust, broken locks and aged cables. Although fences and warning signs are in place, potential hazards still exist. Damaged fences or missing warning signs may allow children or passers‑by to approach and touch the device, which could lead to electric shock accidents. Rainwater seeping into the cabinet may trigger short‑circuit and even fire hazards.

Operation and maintenance teams shall carry out regular inspections. Fencing integrity needs checking, damaged barriers should be reinforced, and faded or fallen warning plates must be replaced. Technicians shall test cabinet waterproof performance and cable insulation, and trim surrounding plants to reduce moisture erosion. Local residents should also be reminded not to climb or tamper with electrical cabinets.

Safety of outdoor electrical facilities matters a lot. Physical protection, warning signs and routine inspections are all indispensable. Only by implementing protective measures continuously can electric‑shock accidents be prevented and public personal safety be guaranteed.

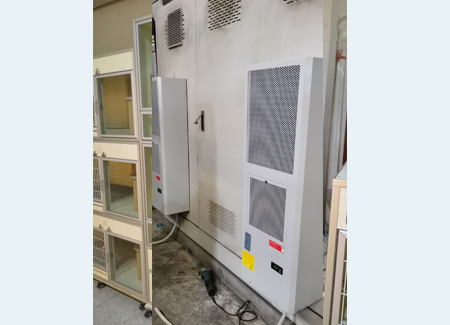

Cabinet Air Conditioner Application

In modern manufacturing workshops, stable temperature control for electrical cabinets is critical to guarantee continuous production and avoid unexpected equipment downtime. This on‑site case shows cabinet air conditioners deployed for large‑scale industrial processing facilities.

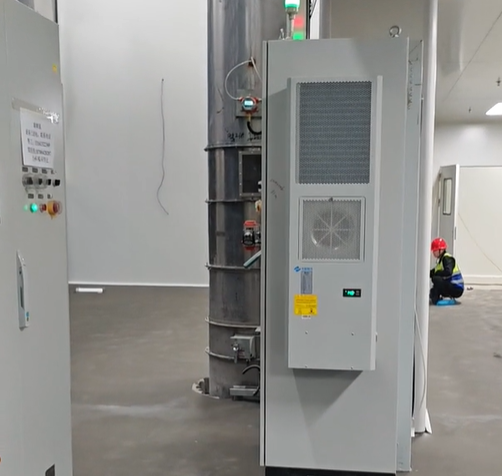

The photo captures a newly‑commissioned production site. Tall electrical cabinets are equipped with side‑mounted cabinet air conditioners. The cooling unit is directly fitted on the enclosure surface, with built‑in fans and heat‑dissipation grilles. A digital display panel offers real‑time temperature monitoring. Inside these cabinets are high‑density power and control components, which generate substantial heat during long‑hour operation. Without effective thermal management, overheating will trigger electronic component failure, signal errors and unplanned shutdowns.

Different from ordinary air‑conditioning systems for workshop rooms, cabinet air conditioners create a closed cooling loop. They cool air only inside the cabinet, isolating dust, moisture and corrosive particles from the external factory environment. This design is well‑suited for industrial workshops with heavy‑duty process equipment, as seen from the large vertical process vessel in the background. Even when the ambient workshop temperature fluctuates, internal cabinet temperature can be kept within the preset safe range.

During the installation phase, field technicians carry out assembly and commissioning work on‑site. After installation, operators can read running status directly from the unit display. Alarm indicators on top of cabinets provide early warnings for abnormal temperature or unit faults.

This thermal control solution improves equipment reliability, reduces maintenance frequency, and extends the service life of expensive electric parts. For capital‑intensive industrial production lines, proper cabinet cooling brings tangible long‑term economic benefits by minimizing production interruptions.

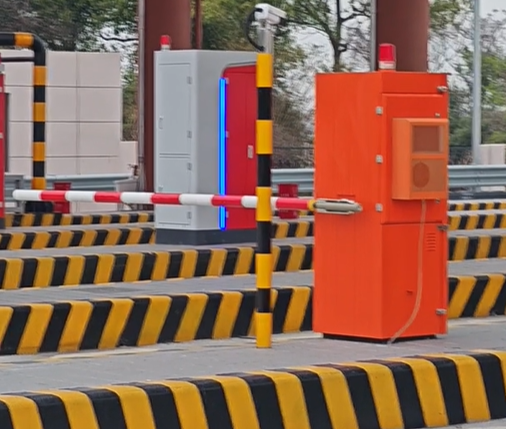

Cabinet Air Conditioner for Highway ETC Toll Lanes

The outdoor ETC toll lanes on expressways operate around‑the‑clock under harsh open‑air conditions. Control cabinets beside lanes accommodate critical hardware including ETC readers‑writers, switches and industrial controllers. Exposed to direct blazing sunlight in summer, internal cabinet temperature can rise sharply. In wet seasons, high humidity and dew condensation frequently occur inside enclosures. Excessive heat often triggers equipment crash and failure in vehicle identification, while condensed moisture causes short‑circuits on circuit boards. These malfunctions disrupt normal barrier‑gate operation, lower passing efficiency and bring frequent lane breakdowns.

Cabinet air‑conditioning units are deployed for these highway ETC cabinet sites to deliver precise thermal management. Adopting closed‑loop internal circulation cooling, the cabinet air conditioner dissipates heat generated inside cabinets, and blocks rainwater, dust and humid outdoor air from entering the enclosure. Whether under extreme high surface temperature in midsummer or damp rainy weather, it stabilizes inner cabinet temperature within the optimal working range for electronics and effectively suppresses dew formation. Thus, continuous and reliable performance of ETC recognition, barrier control and data transmission devices is guaranteed.

Without proper temperature control, ETC cabinets suffered frequent failures in hot seasons. Maintenance teams had to travel among toll stations repeatedly, resulting in high on‑site service costs. After installing cabinet air conditioners, the operating environment for electronic components is greatly improved. Equipment downtime caused by high temperature and condensation is significantly reduced. Field maintenance workload drops remarkably. The solution supports 7×24‑hour stable operation of ETC lanes and minimizes traffic congestion risks. It also extends the service life of communication and control hardware inside cabinets, providing solid thermal protection for intelligent expressway toll systems.

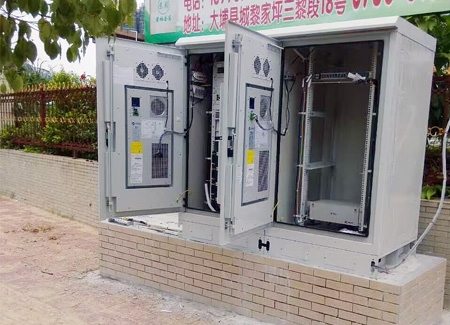

Outdoor Cabinet Air‑Conditioning Application

In many urban parks and roadside zones, outdoor electrical cabinets operate under harsh open‑air environmental conditions. Direct sunlight, high ambient temperature and humid weather will cause internal electronic components to overheat, which easily triggers performance degradation, unexpected shutdowns and shortened service life. The cabinet air‑conditioner serves as a reliable thermal management solution for these field‑deployed equipment cabinets.

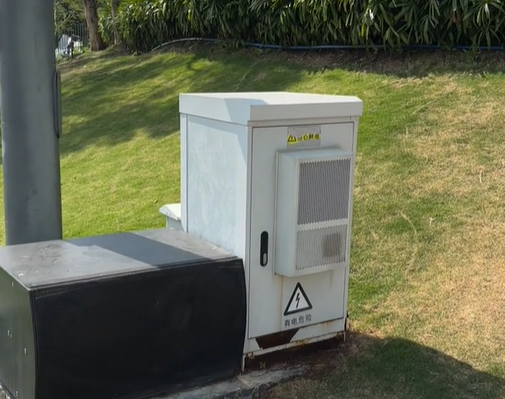

As shown in the site photo, the electrical cabinet is installed on the grassland in an open park, fully exposed to sunshine and outdoor temperature changes. A dedicated cabinet air‑conditioner is mounted on the cabinet door. It forms a closed independent cooling loop: it dissipates the heat generated inside the cabinet to the outside environment, while preventing dust, rain and moist air from entering the cabinet interior.

Traditional cooling solutions such as simple fans cannot meet the requirement here. Fans only achieve air exchange with outside air, bringing in dust and humidity at the same time. In contrast, cabinet air‑conditioners precisely control the internal cabinet temperature within the ideal working range, isolating outdoor dust and moisture. It guarantees stable running for power supply, communication and control modules all year round, even under scorching summer sunlight.

This installation case reflects core advantages of cabinet air‑conditioners: compact on‑door mounting structure, easy on‑site installation, low maintenance workload, and strong environmental adaptability. For outdoor communication cabinets, power distribution cabinets and roadside control cabinets, proper thermal management with cabinet air‑conditioners effectively reduces equipment failure rates, cuts long‑term replacement and repair costs, and improves the reliability of whole field‑side infrastructure.

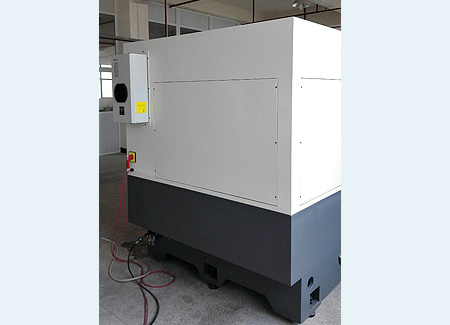

Industrial Cabinet Air Conditioner Application Case

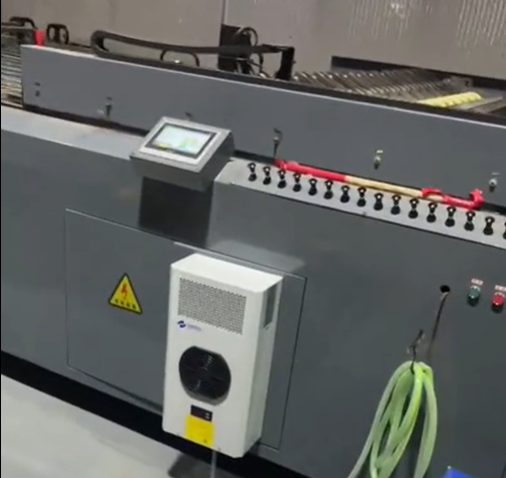

In modern continuous production lines, stable temperature control of equipment cabinets is critical to guarantee uninterrupted manufacturing. This case introduces the cabinet air conditioner installed on a large industrial continuous furnace production machine.

Long-time operation of this production equipment will continuously generate heat inside its electrical control cabinet. Excess high temperature easily causes failures of PLC, touchscreen and circuit components, leading to unexpected shutdowns, unstable product quality and increased maintenance cost. To solve this pain point, our cabinet air conditioner is mounted directly on the side of the control cabinet.

This air conditioner adopts an integrated compact structure, no need for complicated piping installation. It efficiently isolates the internal cabinet space from the dusty factory workshop environment. It continuously dissipates heat for the electric control system, keeping the internal temperature within the preset safe working range. The unit features automatic temperature regulation, overheat protection and alarm functions, adapting to the 24-hour non-stop working mode of the production line.

Since deployment, the internal cabinet temperature has been well controlled. The touch screen and control electronics run steadily without overheating faults. Unplanned downtime caused by high-temperature electronic failure has been greatly reduced. The service life of expensive electrical components is extended, cutting long-term replacement and maintenance expenses.

This solution proves that cabinet air conditioning is a reliable thermal management choice for continuous industrial machinery. It is widely applicable to furnaces, laser machines, automated assembly lines and other industrial equipment in dusty, heavy-load workshop environments. It protects core control hardware and supports stable, high-efficiency mass production for manufacturers.

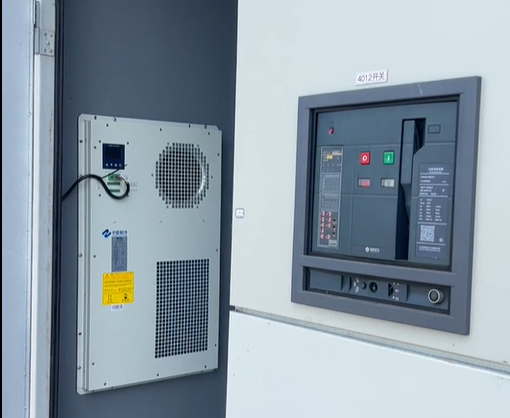

PV Container Cabinet On-site Application

This on-site photo shows a prefabricated photovoltaic container cabinet, widely deployed in solar power stations for centralized energy control and thermal management.

On the right side sits the medium-voltage switchgear marked “4012 switch”. It integrates circuit breaking, protection and local operation interfaces. Red and green buttons serve for emergency stop and closing operation, while built-in monitoring modules track current, voltage and fault signals in real time. It acts as the core safety gateway, cutting off power immediately once abnormal conditions occur to protect the whole PV system.

Mounted on the cabinet wall on the left is a cabinet air conditioner from Zone Cooling. Designed for outdoor electrical enclosures, it stabilifies internal temperature and humidity. The intelligent display panel allows local parameter setup, and the ventilation grilles support efficient heat dissipation. As solar inverters and switchgear generate continuous heat during operation, this cooling unit prevents overheating, dust damage and condensation, extending service life of electrical components.

The combined solution features compact layout and easy site installation. All key devices are pre-installed inside the container, minimizing field wiring work. It fits utility-scale photovoltaic farms, battery energy storage stations and remote industrial power supply projects.

Rugged enclosure, reliable switch protection and dedicated thermal control together ensure stable 24-hour operation under harsh outdoor environments. This all-in-one containerized solution greatly shortens construction cycles and lowers maintenance costs for renewable power projects.

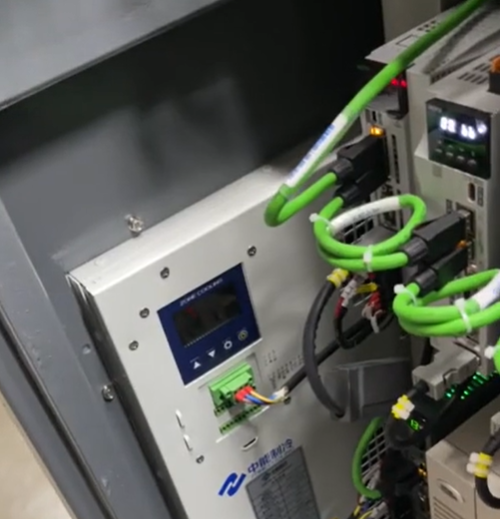

Cabinet Air Conditioner for Industrial Control System

In modern automated production sites, servo drives, PLCs and other precision electronic components generate substantial heat during continuous operation. Excessive heat inside the electrical cabinet accelerates component aging, triggering communication failures, random alarms and unexpected shutdowns. Dust and moisture in the workshop may also corrode circuit boards, causing unplanned production losses.

This site adopts Zone Cooling cabinet air‑conditioner to deliver reliable thermal management for the whole control unit. Equipped with a digital display panel, the unit enables operators to monitor real‑time cabinet temperature and adjust temperature parameters conveniently. Reserved terminal blocks support connection with the customer’s control system for alarm signal output, facilitating on‑site and remote status monitoring.

Adopting a sealed internal circulation cooling structure, this cabinet air conditioner isolates external dust and humid air. It only exchanges heat for air inside the cabinet instead of mixing inner and outer air, preventing contaminants from polluting delicate circuit boards. Its compact structure fits well inside electrical cabinets, achieving neat wiring and good compatibility with servo controllers and communication modules as shown on site.

After commissioning, internal cabinet temperature stays within the optimal working range for electronics. Heat generated by servo units and controllers is efficiently dissipated. Compared with traditional fan cooling solutions, this air‑conditioner works stably even under high ambient summer temperatures. It effectively cuts down failure rates of electrical hardware, extends service life of control equipment and reduces maintenance workload.

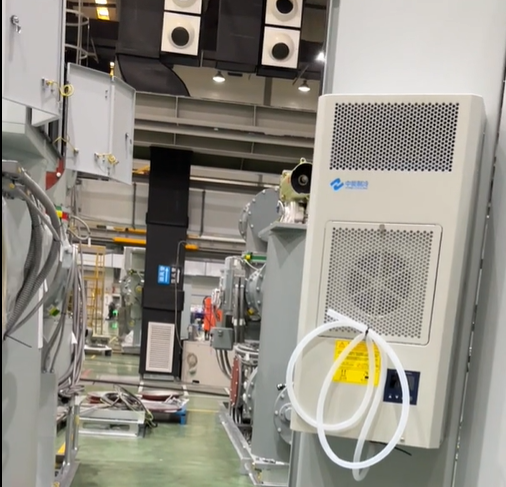

Cabinet Air‑Conditioner for Heavy‑Duty Electrical

Modern heavy‑industry manufacturing workshops generate massive heat from high‑voltage electrical equipment, transformers and control cabinets. Excessive temperature and humidity inside electrical enclosures frequently trigger component aging, unexpected shutdowns and shortened service life, bringing huge risks to continuous production. This case shows the on‑site application of Zone Cooling cabinet air‑conditioners inside a large‑scale electrical equipment assembly plant.

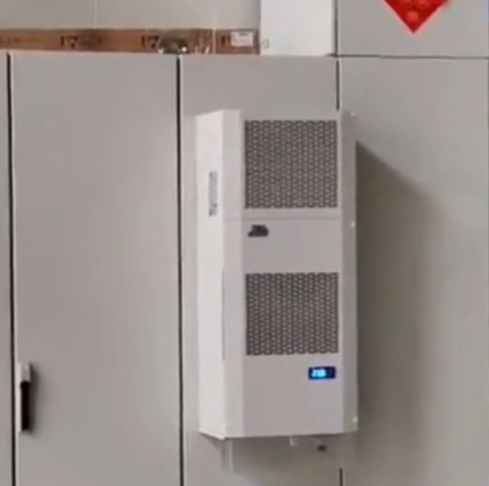

As shown in the workshop photo, wall‑mounted cabinet air‑conditioners are directly fitted onto electrical cabinets among production lines. These units deliver stable cooling and dehumidification for tightly packed electronic components inside enclosures. The closed‑loop cooling design prevents workshop dust, moisture and industrial contaminants from entering the cabinet interior. The condensate drainage tube handles condensed water properly, avoiding water leakage damage to circuits. Equipped with digital control panels, operators can set target temperature and monitor real‑time working status conveniently.

Before deploying these cooling units, the customer faced frequent overheating alarms during equipment commissioning. High ambient heat from nearby heavy machinery made internal cabinet temperature rise sharply under full‑load testing. After installation, the cabinet inner temperature is steadily maintained within the safe operating range. Unplanned overheat‑related faults dropped significantly during long‑hour equipment validation tests.
